Purchase list for H1's :

(2) Aforementioned H1 high beam light assy's
(2) 130w H1 bulbs
(1) 30A relay

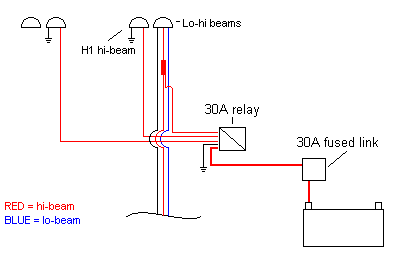

The relay will have (5) spade connectors coming out the bottom. It is to be wired like this : 1 wire from the relay(30) to a power source - always hot, and a 30A fused link
USE 12ga WIRE!! USE A FUSE!! (I bought a separate fuse block for lights and other accessories)

1 wire from the relay to a ground (56)

2 wires from the relay(76) to each H-1 bulb positive. NOTE - each H1 light assy also has a ground wire.

1 wire from the relay(55) , which usually goes to a rocker switch of some sort, I instead piggybacked it into my lo-hi beam lights, attaching it with the wire that is hot only when the hi-beams are on (there are 3 wires at this headlight connector, and simply use a tester to see which one is hot only when the hi-beams are fired up). This last "trick" allows you to turn on and off your new H1 hi-beams the same way as stock.
