Roy Wallace's 1974 620 Pickup

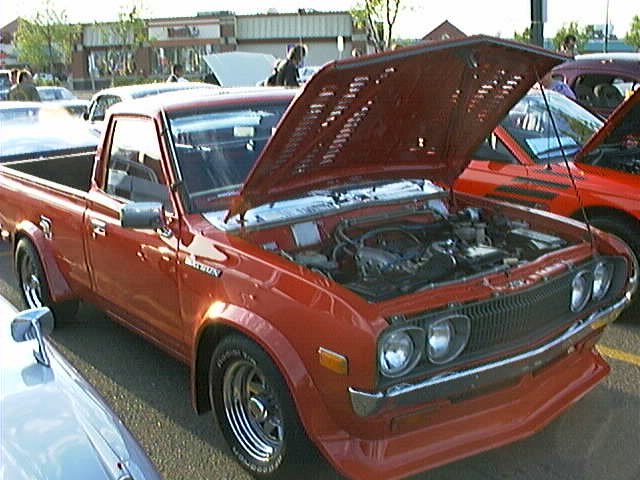

Here are some pictures of my 620 P/U. It is a '74 with a NAPS-Z 2.0L & five speed from a '81 200SX. I have upgraded the front end to '81 720 brakes( in order to use Superior Prod. lowered spindles). I also used '79 lower control arms and modified stock uppers( lengthened one inch), to be able to use ball joints instead of kingpins. I also welded the strut rod brackets from a '79 onto the front cross member.

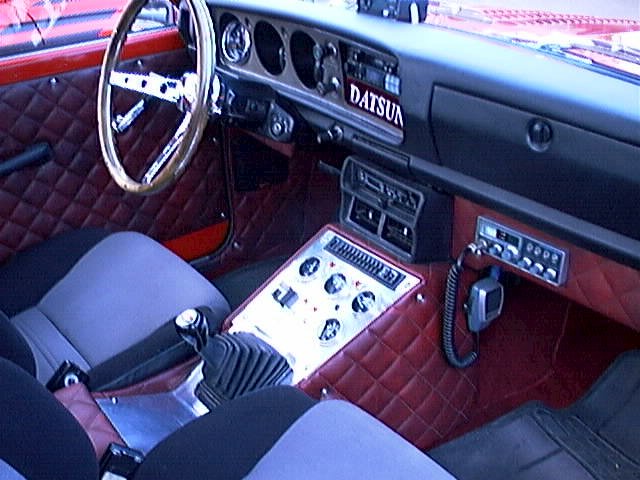

The rest of the chassis is basically stock, as well as the engine, save for a 2 1\2" exhaust with a Dynomax SuperTurbo muffler & a 4" chrome tip. I have used BF Goodrich Radial T\A 245\50-14 tires mounted on 7" Appliance chrome spoke wheels. I used a custom 2" wheel spacer on the rears to get them to line up with the flares real nice.( I used the center portion of an old wheel from a dually kit I had kicking around.) The paint is PPG Concept, and is the factory red.(called Pagoda Red) The interior work was done by myself, and the seats are out of a Honda Civic CRX - Si. The console has gauges for oil pressure, oil temp, volts, & amps. There is water temp, vacuum and an hour meter in an overhead console as well. The heater is from a '74 610. Along with the chrome tail lights & fill panel,gate latches, gas door, cowl cover, wiper arms and blades, and about 125 louvers, that about sums it up.
