City of Cornelius network
details:
Last updated
Thursday, November 19, 2009
Topology:
100Mbps Ethernet with servers connected via Gigabit
Ethernet using fiber-optic
5 unmanaged 100Mbit switches
1 managed 10/100/Gigabit switch (Dell PowerConnect 3324)
1 managed fiber-optic Gigabit switch (D-Link DGS-3204)
Servers:
1 Dell PowerEdge 1550 [Windows 2K SP4 | 933MHz P4 |
512MB RAM | 32GB SCSI] ("CITYHALL")
1 Dell PowerEdge 1750 [Windows 2K3 Small Bus. Server | Dual
2.4GHz Xeon |
2GBB RAM | 100GB SCSI] ("COC-SBS1")
1 Dell PowerEdge 2550 [Windows 2K SP4 | 933MHz P4 |
2.25GB RAM | 72GB SCSI] ("COC-UTIL2")
1 Dell PowerEdge 4400 [Windows 2K SP4 |
Dual 1GHz MHz P4 | 512MB RAM | 32GB
RAID1 SCSI] ("COC-PW1")
1 AOpen PC [Windows 2K SP4 | 500MHz P2 | 384 MB RAM | 60GB+120GB+120GB IDE ] ("COC-UITL1")
Desktops:
100% Dell Optiplex
desktops [Windows 2K SP4 /
Office 2000 SP3 / Internet Explorer 6 SP1]
Protection:
Client/Server/ Messaging Suite for SMB
Trend ScanMail protection for Exchange 2003
Trend OfficeScan on all clients and servers. Local drives
scanned 1x / week via scheduling.
PC's auto-power on daily (not weekends) between @5am to run Windows
Updates and A-V scans (in that
order). Update times are staggered to minimize load on WAN. AV scans are
also scheduled to finish before normal business hours.
Management:

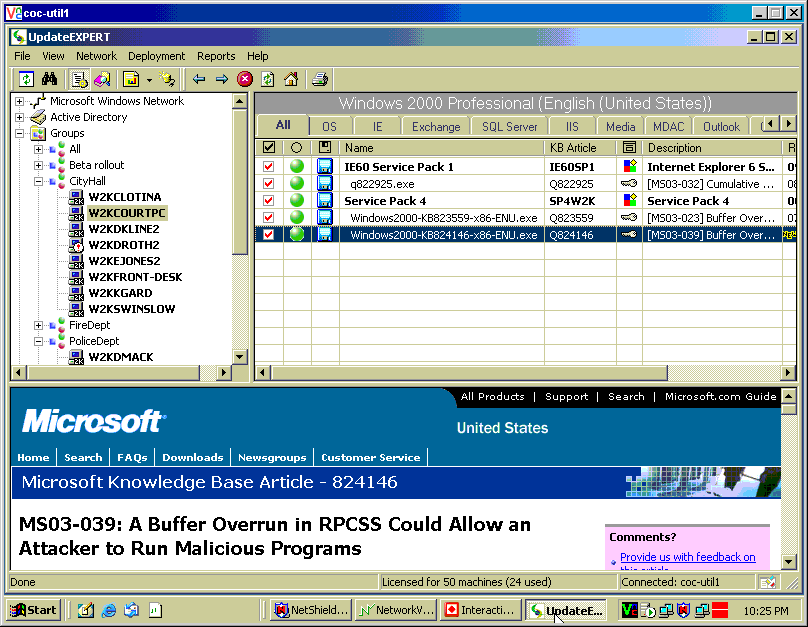

UpdateEXPERT v6.2 patch management software (actual
screen) [Company
website]
LANGuard network scanner [Company
website]
Microsoft Baseline Security Analyzer [Company
website]

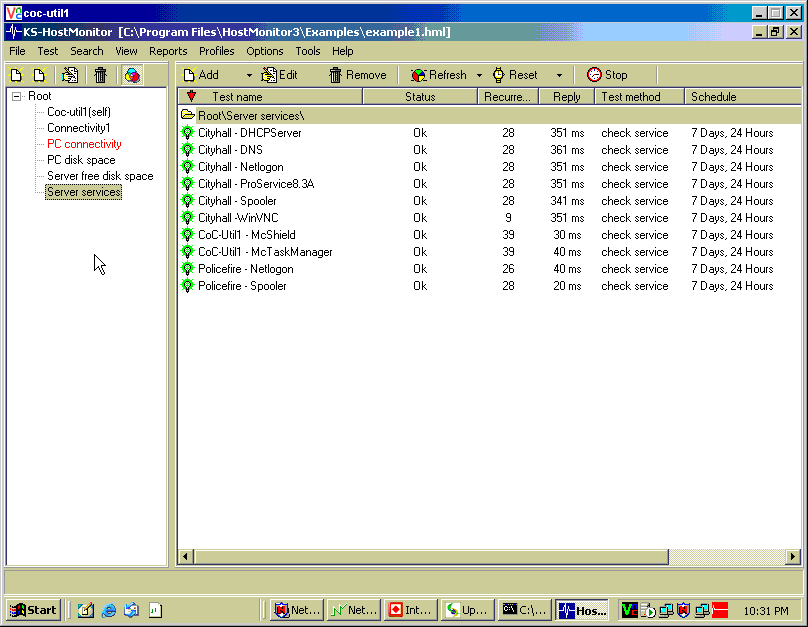

Host Monitor v3.7 software (actual
screen) [Company
website]

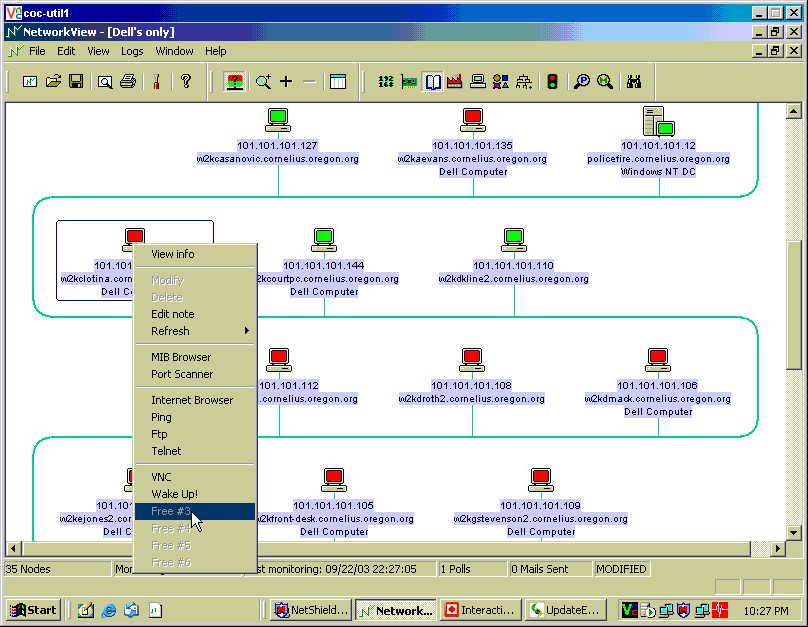

NetworkView v2 software (actual
screen) [Company website]

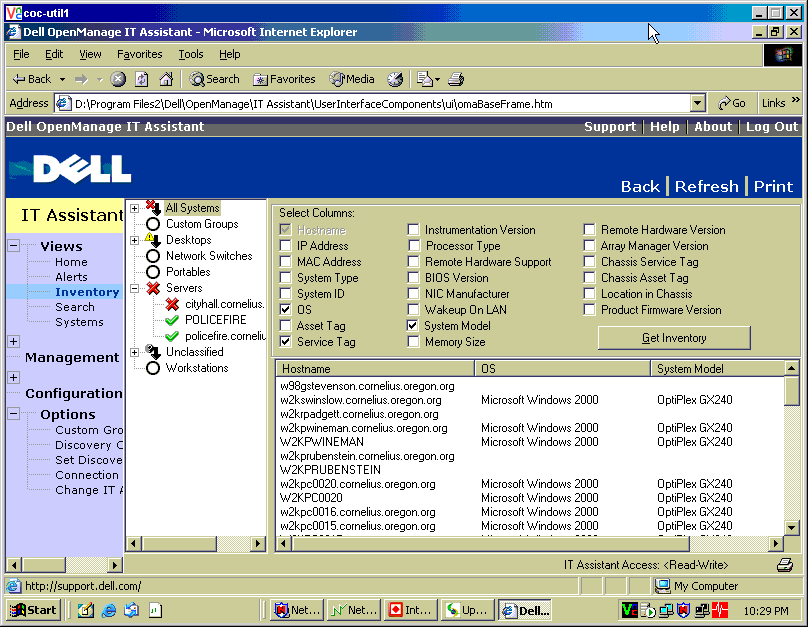

Dell OpenManage installed and configured (actual
screen)
VNC remote control [Company website]
Wake On LAN implemented.
Other:
Exchange Server 2003
SQL Server 2003
Help Desk solution (Web+Center) [company
website] (1/21/05)
Initial network
configuration, Nov 2000, (Pre-DLCE) Topology:
5 10/100Mbps Ethernet hubs
Dial-up Internet
Servers:
1 AOpen PC [Windows NT4 SP3 | 200MHz P2 | 128 MB RAM | 4GB IDE ]
1 Generic PC [NetWare 3.11 | 200MHz P2 | 128 MB RAM | 2GB SCSI ]
1 Generic PC [NetWare 4.1 | 300MHz P2 | 128 MB RAM | 2GB SCSI ] Desktops:
Generic PC's Win 95 / Win 98, Office 97 / 2000,
Outlook 97 / 98 / 2000, IE4. IE5, IE5.5
Protection:
Approximately 25% desktops with Norton Anti-virus, 25%
with McAfee, 50% unprotected. No method of staying current with updates.
Management:
PCAnywhere dial in to server, no remote capability to
other machines in network.
No software patch management.
|
